Electricity demand is not a flat requirement waiting for generators to satisfy it. It is the accumulated result of routines: waking, working, cooking, heating water, cooling rooms and returning home. Those routines create patterns, and patterns create flexibility, which is exactly what the chart above already shows before a single word of analysis is added: a cleaner grid becomes easier to operate when demand is understood as something that can respond rather than merely consume.
This household record covers 2007 to 2010 and should not be mistaken for a universal customer profile. Its value is demonstrative. Five views at different time scales show how behaviour leaves a measurable fingerprint, and where interventions can be targeted without asking people to give up the services electricity provides.
The week is visible in the distribution
The chart opening this piece compares power consumption by day of week. The boxes overlap, because no day behaves identically, but their centres and ranges differ. Weekends and weekdays do not simply reproduce the same load with different labels; the distribution shifts as occupancy and household routines change.
This first view establishes the central premise. Demand has a calendar. If a single home displays recurring structure, millions of homes following partially shared routines can create system-scale peaks worth anticipating.
Long records separate routine from anomaly

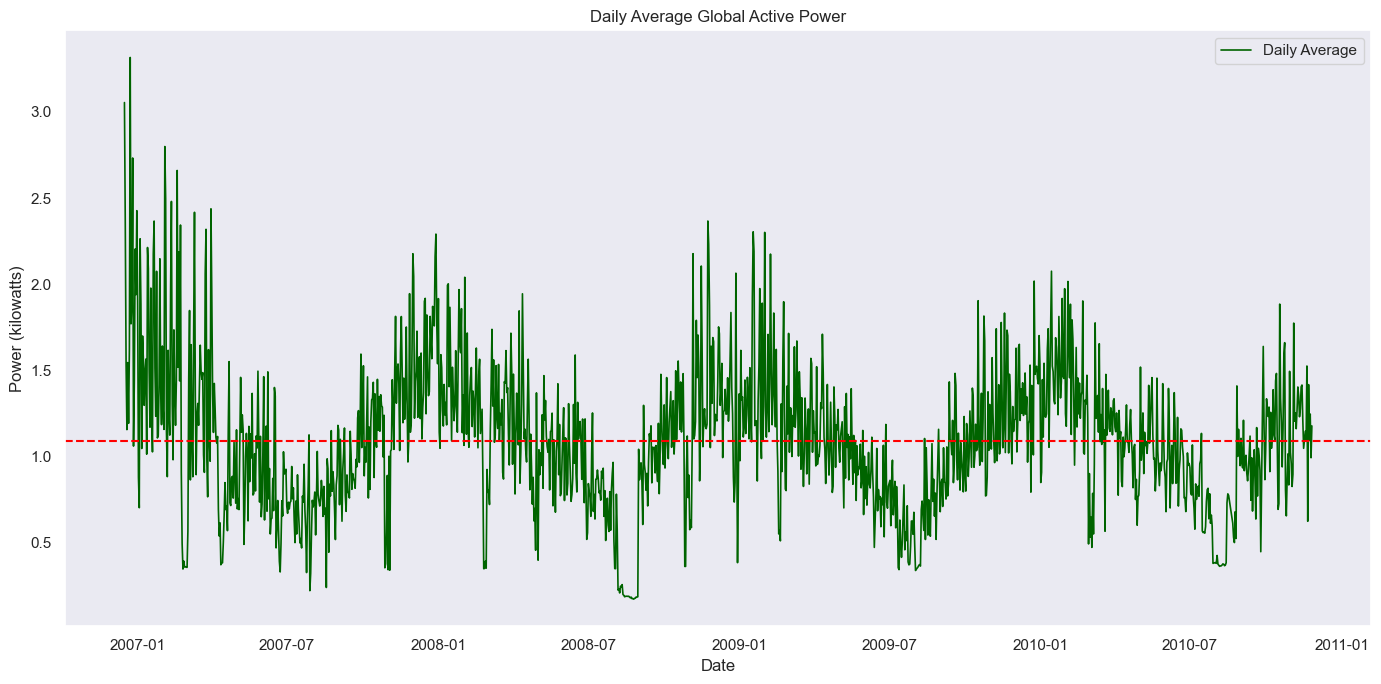

Figure 2. Daily average active power across the multi-year record shows recurring cycles, exceptional peaks and a changing baseline.
Active power was averaged to a daily resolution and plotted across the full multi-year record rather than a single season, specifically so a genuinely rare high-demand day would stand out against the recurring seasonal wave instead of being smoothed into it.
The daily series moves through repeated seasonal waves while also recording unusual high-demand days. A short sample might mistake one peak for normal behaviour or miss the cycles entirely. The multi-year horizon shows both the household's typical operating range and the exceptions a network still has to serve.
Demand planning needs both pieces. Average behaviour informs routine supply; the tails determine capacity stress. Flexibility has greatest value when it reduces demand during those relatively rare but consequential periods.
The total load is built from unequal components

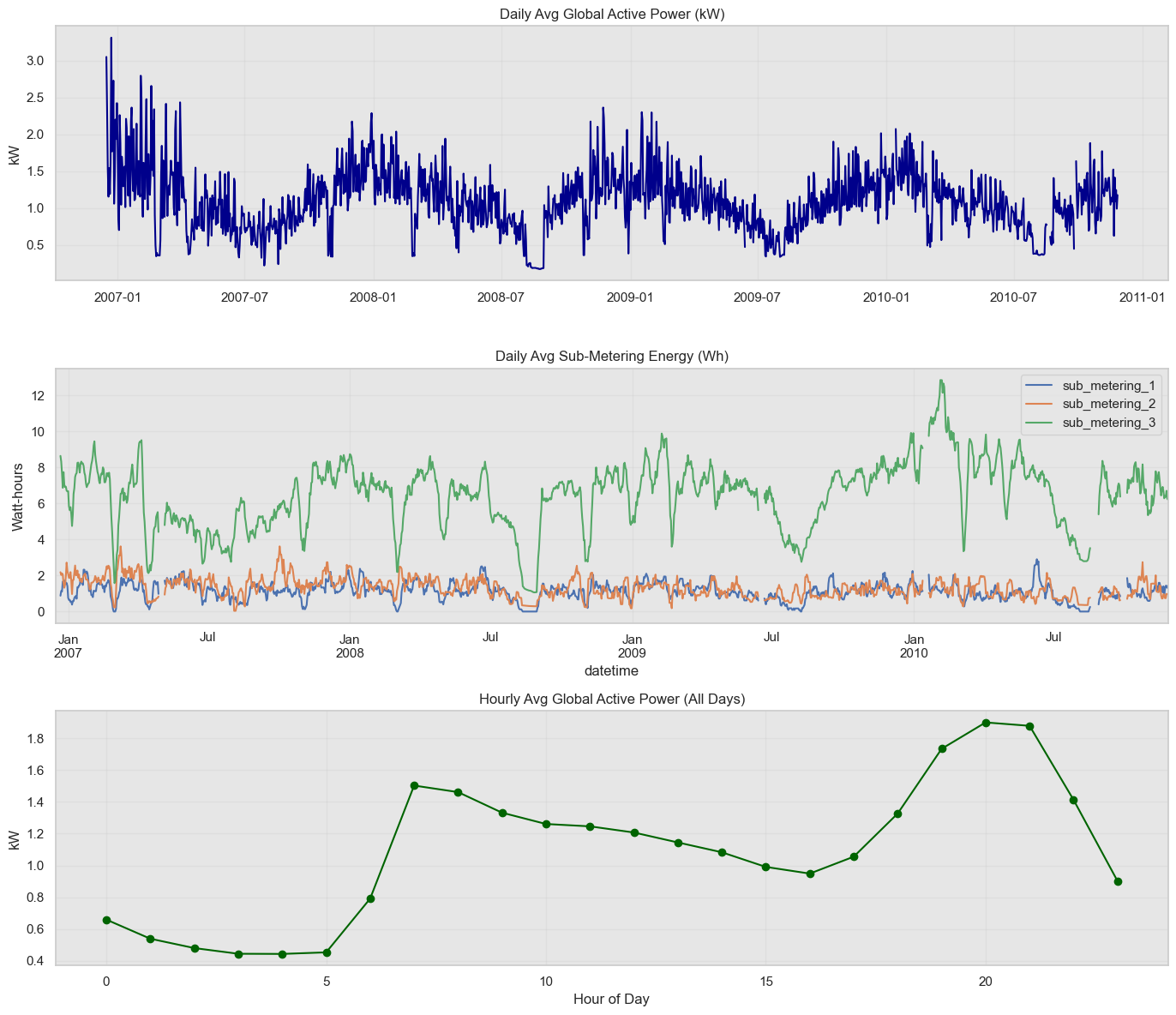

Figure 3. Long-run total demand, sub-metered circuits and the average hourly profile reveal different layers of the same household load.
The household's total demand was decomposed into its sub-metered circuits and paired with an averaged hourly profile in one multi-panel figure, so the total, its components and its timing could all be read against each other rather than requiring three separate charts.
The multi-panel view moves from the household total toward its components. The sub-metered circuits do not contribute equally: the water-heater and air-conditioning channel is persistently larger than the kitchen and laundry channels. The hourly average then shows when the combined load tends to rise.
This is operationally useful. A demand-response program aimed uniformly at every appliance would create inconvenience for little gain. Targeting high-consumption, thermally flexible loads (water heating, cooling and heating) offers more energy to shift while preserving the service households care about.
Weekday and weekend peaks are structurally different

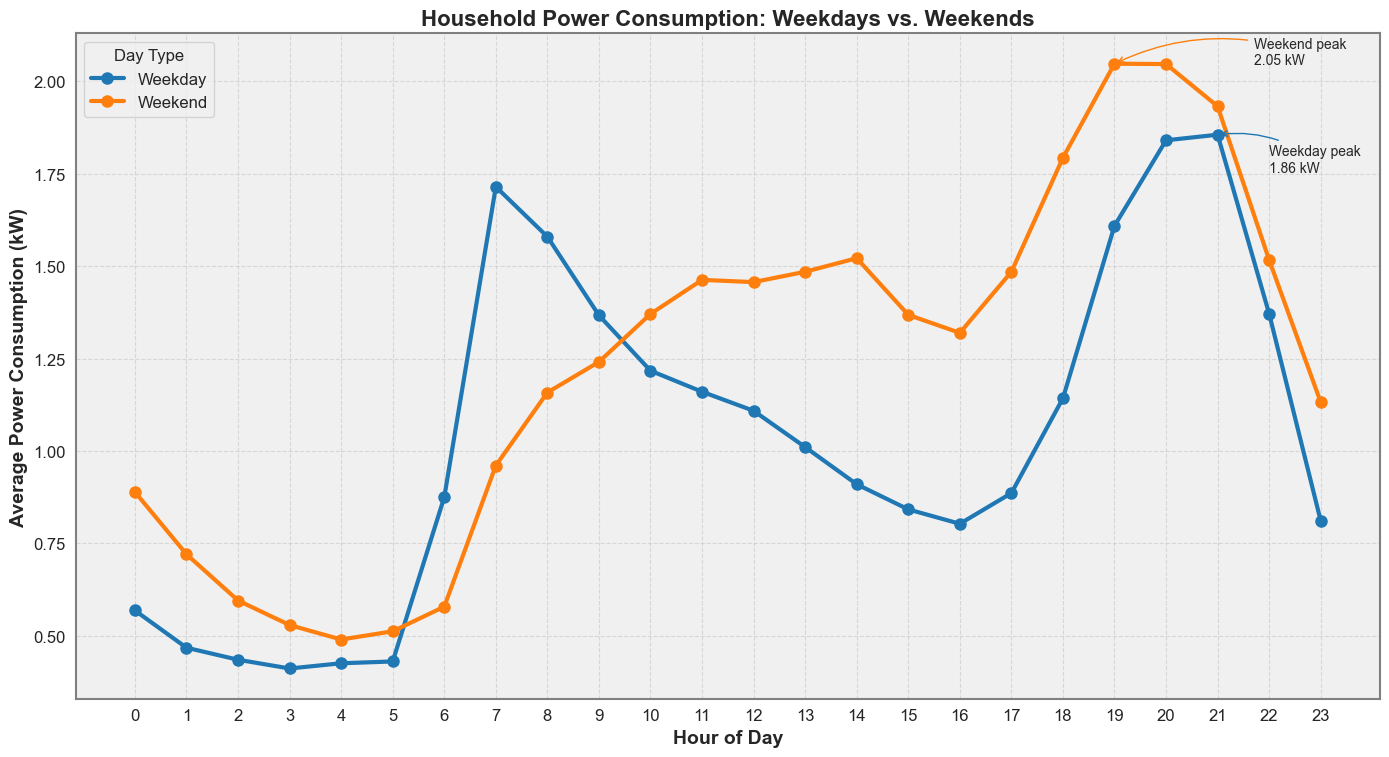

Figure 4. Average hourly profiles show a sharper weekday morning ramp and a higher, differently timed weekend evening peak.
Hourly averages were computed separately for weekdays and weekends and overlaid on the same axis, isolating the shape of the day (not just its total) so the timing difference between the two, not only the magnitude, becomes visible.
The hourly comparison converts the weekly distribution into a schedule. Weekdays carry a pronounced morning rise associated with work and school routines. Weekends remain higher through more of the day and reach an evening peak of roughly 2.05 kW, compared with about 1.86 kW on weekdays in this dataset.
The result challenges the intuition that weekdays must always be more demanding. Occupancy matters. A home that is active for more of the day can use more electricity even without the compressed weekday rush. Tariffs and automated controls work better when they reflect those differences rather than applying one generic peak window to every day.
The full fingerprint shows where flexibility lives

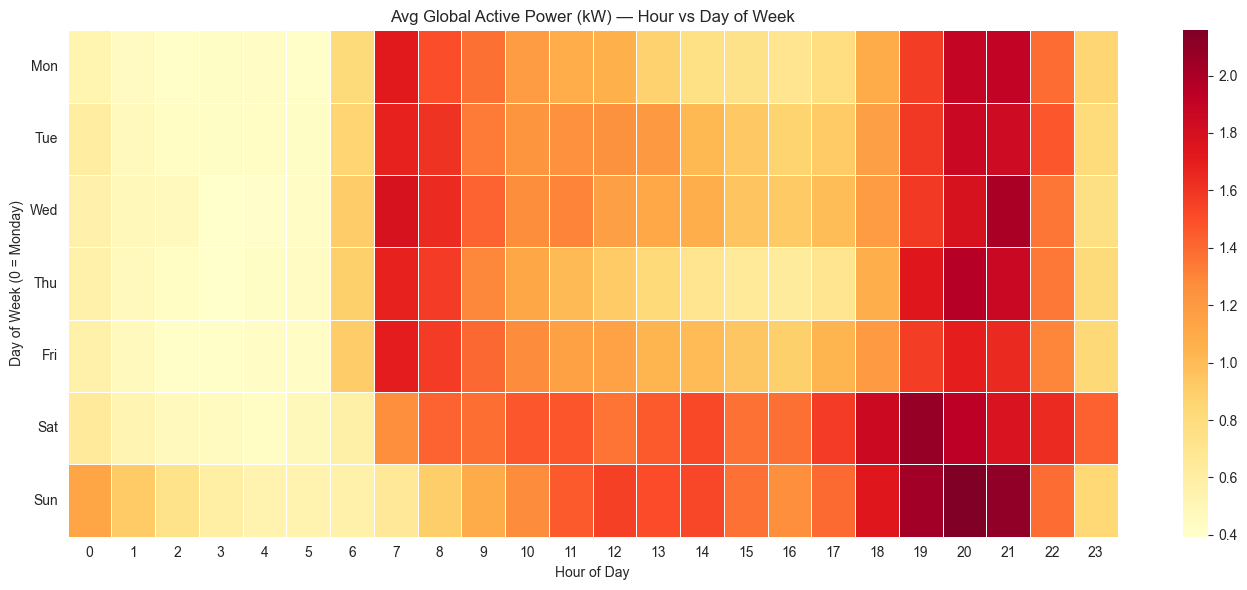

Figure 5. The hour-by-day heatmap locates recurring morning and evening demand peaks across the week.
Average demand was pivoted into a day-by-hour grid and rendered as a heatmap, combining everything the previous four views showed separately into a single two-dimensional picture of when, across an entire week, load actually concentrates.
The heatmap brings day and hour together. Morning blocks appear across weekdays, evening demand intensifies on most days, and weekends carry broader bands of higher use. This is more actionable than a monthly bill because it identifies the actual windows in which batteries, electric-vehicle charging and smart appliances could respond.
The goal is not permanent suppression. It is temporal alignment: move discretionary consumption away from scarce, high-cost periods and toward hours when renewable electricity is abundant. Automation is critical because households should not have to manage the grid minute by minute.
The fingerprint in one view

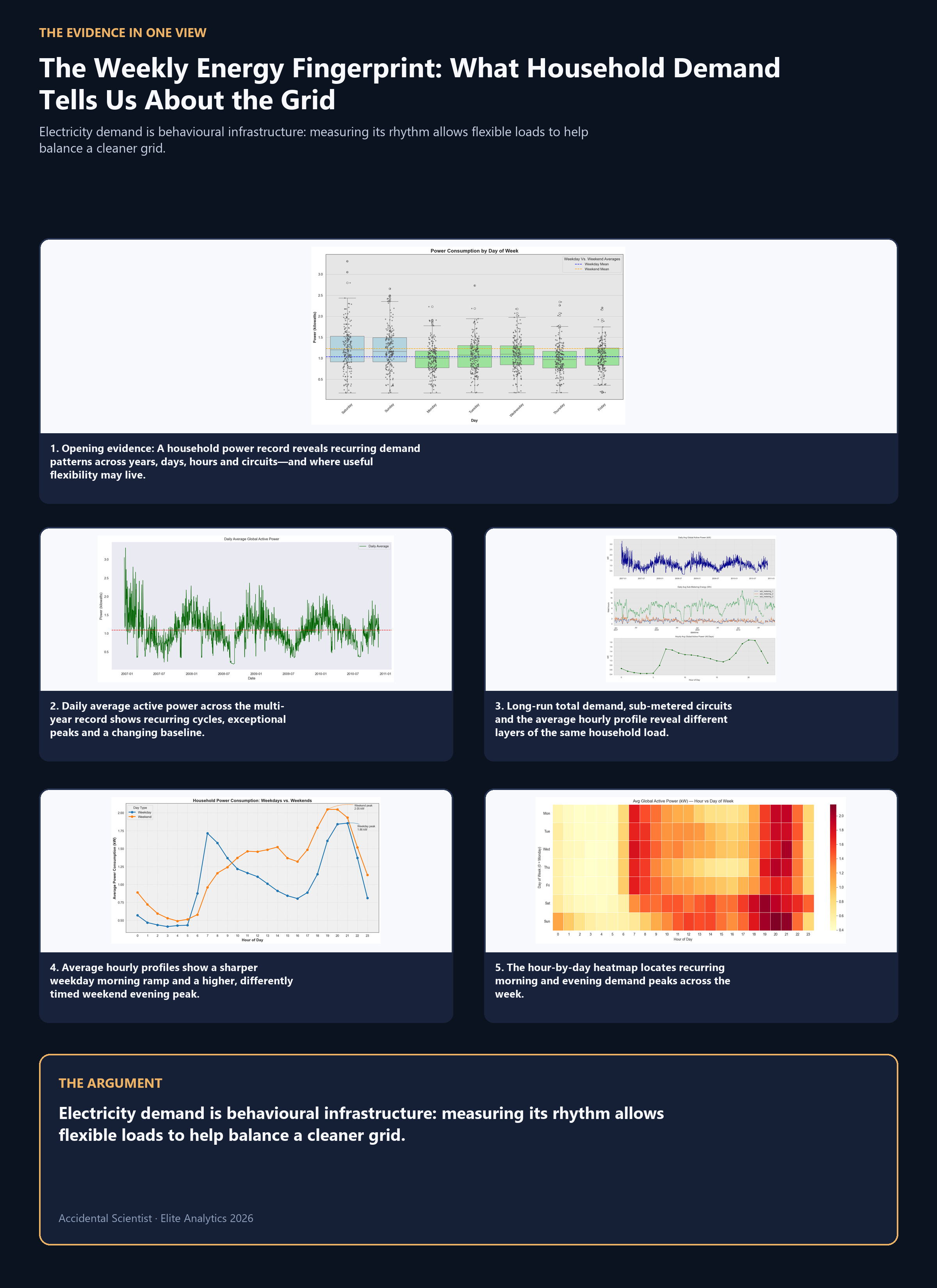

Figure 6. A large-format synthesis board that brings the article's five principal pieces of evidence into one readable argument.
The evidence board turns five demand charts into one operating story. Daily averages show the broad rhythm, the long record separates habit from anomaly, end uses reveal what builds the total, weekday comparisons locate behavioural shifts and the heatmap shows exactly when those patterns occur. Variability becomes structured rather than mysterious.
That structure is an opportunity for the grid. Loads that recur at predictable hours can be shifted, automated or paired with storage more easily than truly random demand. Treating households as a source of flexibility can reduce pressure during peaks while making better use of abundant low-cost generation.
Demand can become part of the infrastructure
The five views progress from distributions to years, circuits, hourly profiles and the complete weekly map. Together they show that demand is patterned, concentrated and partly flexible. They also show why no single average is enough: behaviour changes by season, day, hour and appliance.
The energy transition is not only a supply-side construction project. Transmission and storage remain essential, but responsive demand can reduce the amount of stressed infrastructure required and improve how clean generation is used. Households become participants when technology and tariffs make the valuable behaviour easy.
Electricity demand is behavioural infrastructure. Measure its rhythm well, and the grid gains another tool for balancing clean supply. What I keep coming back to is how ordinary the underlying behaviour is: nobody in this household was trying to be flexible, they were just living their week, and the pattern showed up anyway. That's the part that makes the flexibility feel real to me rather than theoretical.
Methods and original sources
The analysis describes one household-power dataset covering 2007 to 2010, built in Python with pandas handling the resampling, sub-metering breakdown and day/hour pivots, and matplotlib rendering the boxplot, multi-panel, overlay and heatmap views. It reveals useful temporal and circuit-level patterns but is not representative of every household, climate, income group or appliance mix. Circuit labels and units follow the source data.
